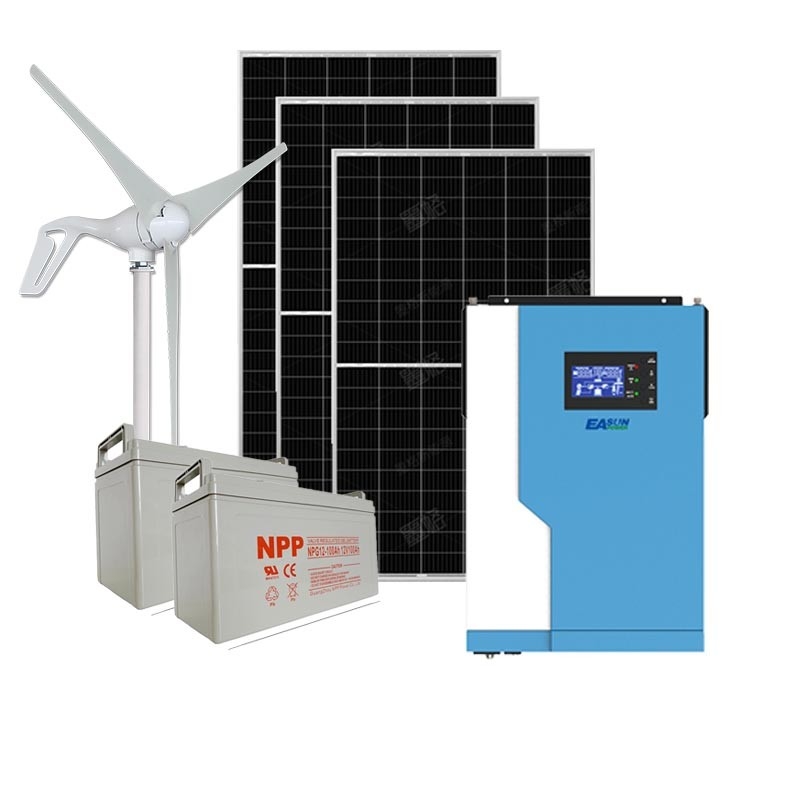

Mppt Solar Panel Battery Storage System 110VAC 5.5kw Hybrid Solar System For Home

Product Description

5.5kw Off-Grid Home Hybrid Solar System Energy Storage System Portable Kit

Product Description:

1. Photovoltaic modules: convert light energy into DC electric energy, charge the battery in an integrated manner, or invert it into AC power to supply power to the load.

2. Mains or generator: connected to the AC power supply, when supplying power to the load, it can provide power to the battery. If not connected power supply or generator, the system also works fine. Powered by batteries and optoelectronic components

3. Battery: When the solar energy is insufficient and there is no power supply, the function of the battery is to ensure the normal use of the system load.

4. Household loads: various household and office loads, including refrigerators, lamps, TV sets, fans, air conditioners, etc.

traffic load.

5. Reverse control integrated machine: energy conversion equipment of the whole system, the specific line connection method depends on the actual application scenario

Specifications:

Detailed introduction:

1.CNR11O series is a solar energy storage and Main charging energy storage and AC sine wave

output.

2 . The solar charging module adopts the latest optimized MPPT tracking technology to fast track the

maximum power. Photovoltaic panel points in any environment, get the maximum energy of the solar

panel in real time.

3 . AC-DC charging module adopts advanced control algorithm to realize full digital dual-loop control

of voltage and current, with high control accuracy and small size.

4 . The DC-AC inverter module is based on all-digital intelligent design, adopts advanced SPWM

technology, and the output is pure sine wave, and converts direct current to alternating current.

Features and Benefits:

1 . Adopt full digital double closed-loop voltage and current control, advanced SPWM technology,output pure sine wave.

2 . It has two output modes of mains bypass and inverter output, and has the function of

uninterrupted power supply.

3. Self-contained mains, photovoltaic double lithium battery activation, support lead-acid battery, lithium battery access. 10. With multiple protection functions, 360° all-round protection.


4. With multi-device open short-circuit protection, over-voltage protection, overload protection, back-feed protection and other functions


5. Horizontal test installation is convenient for cabinet combination installation.


6. It has the function of commercial power and photovoltaic activated lithium battery.

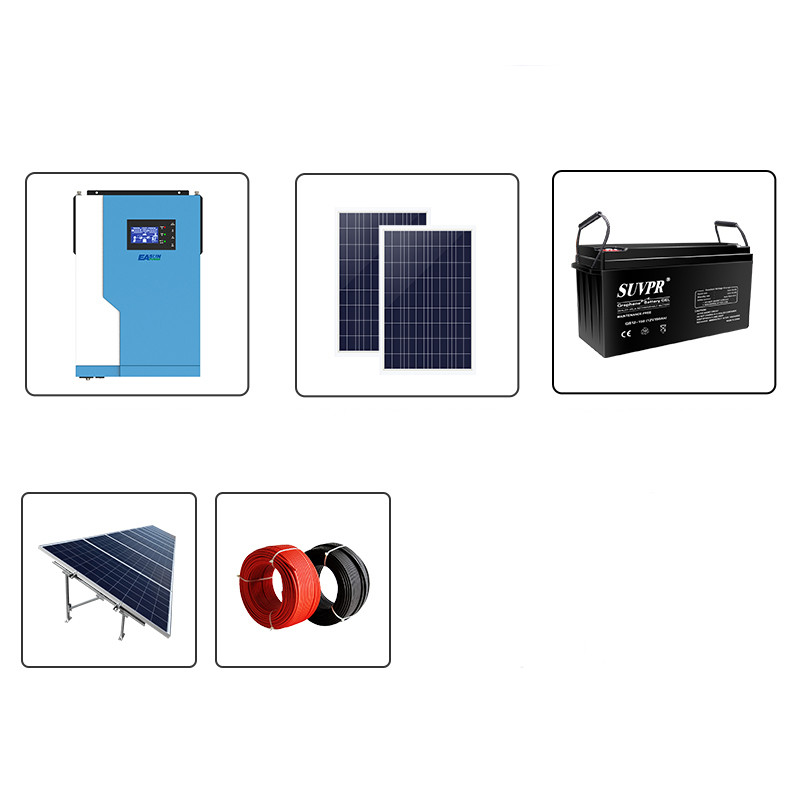

Details display:

Factory Tour:

Luoyang Tuxun Electronic Technology Co., Ltd. in the energy industry, has a number of industrial chains, the company has the

ability to quickly transfer customer needs to the production line, to provide personalized customized services.
