Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Minghong |
| Certification: | CE/EMC/LVD/ETL |
| Model Number: | CNS110 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 2 EA |
| Price: | $376-$416 |
| Packaging Details: | Size(mm):550*400*200 Weight:11.5kg |
| Delivery Time: | 10~20 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 PCS/M |
|
Detail Information |
|||
| Battry Voltage: | 48VDC | Float Charge Protection: | 54VDC |
|---|---|---|---|
| PV Maximum Open Circuit Voltage: | 500VDC | PV Maximum Power: | 6000W |
| Net Weight（kg）: | 11.5 | Storage Temperature: | -15°C-60°C |
| Size（mm）: | 300*110*462 | Storage Waveformtemperature: | Pure Sine Wave |
| High Light: | High efficiency mppt solar charger inverter,50Hz mppt solar charger inverter,5500w Off Grid Home Inverter |
||
Product Description

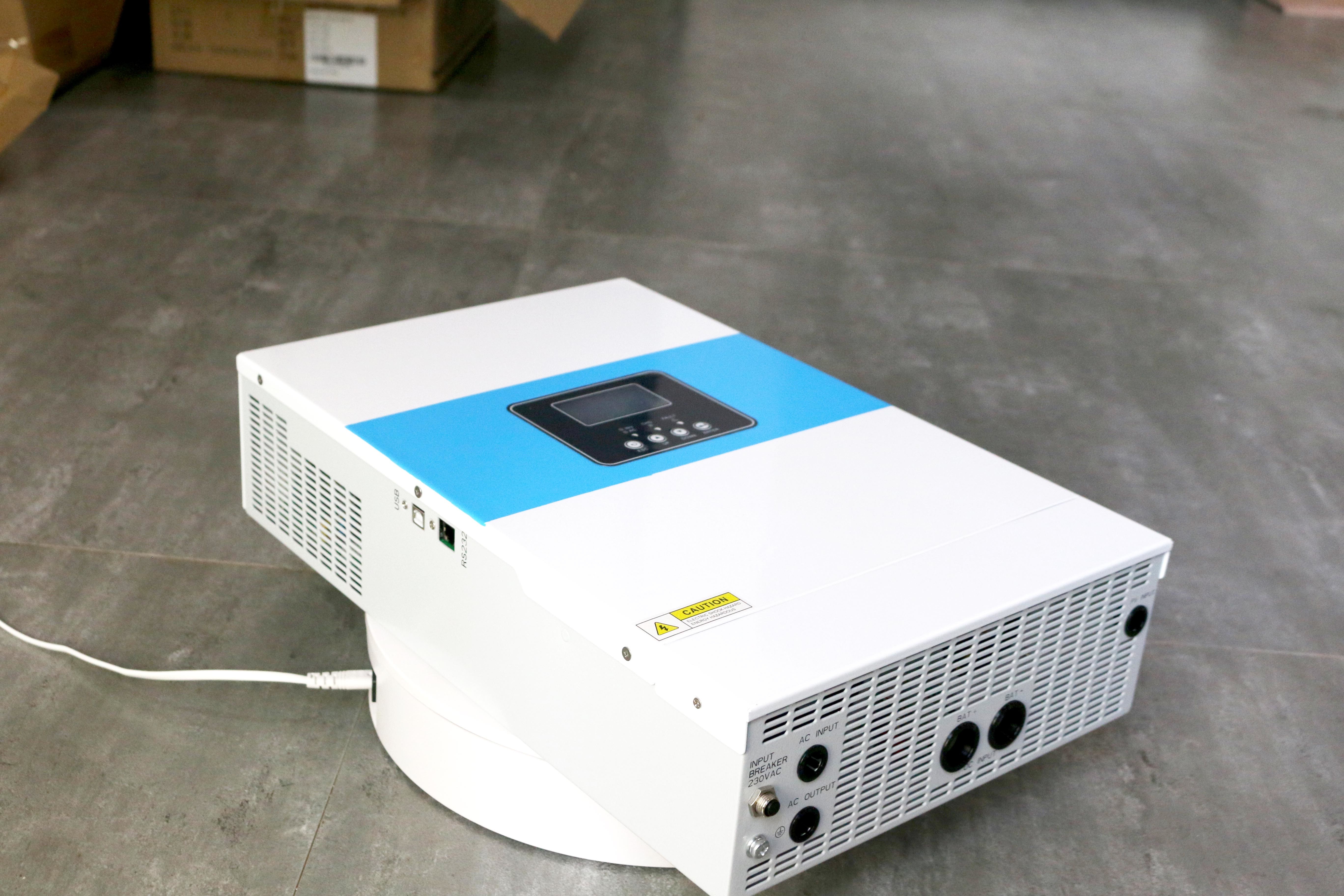

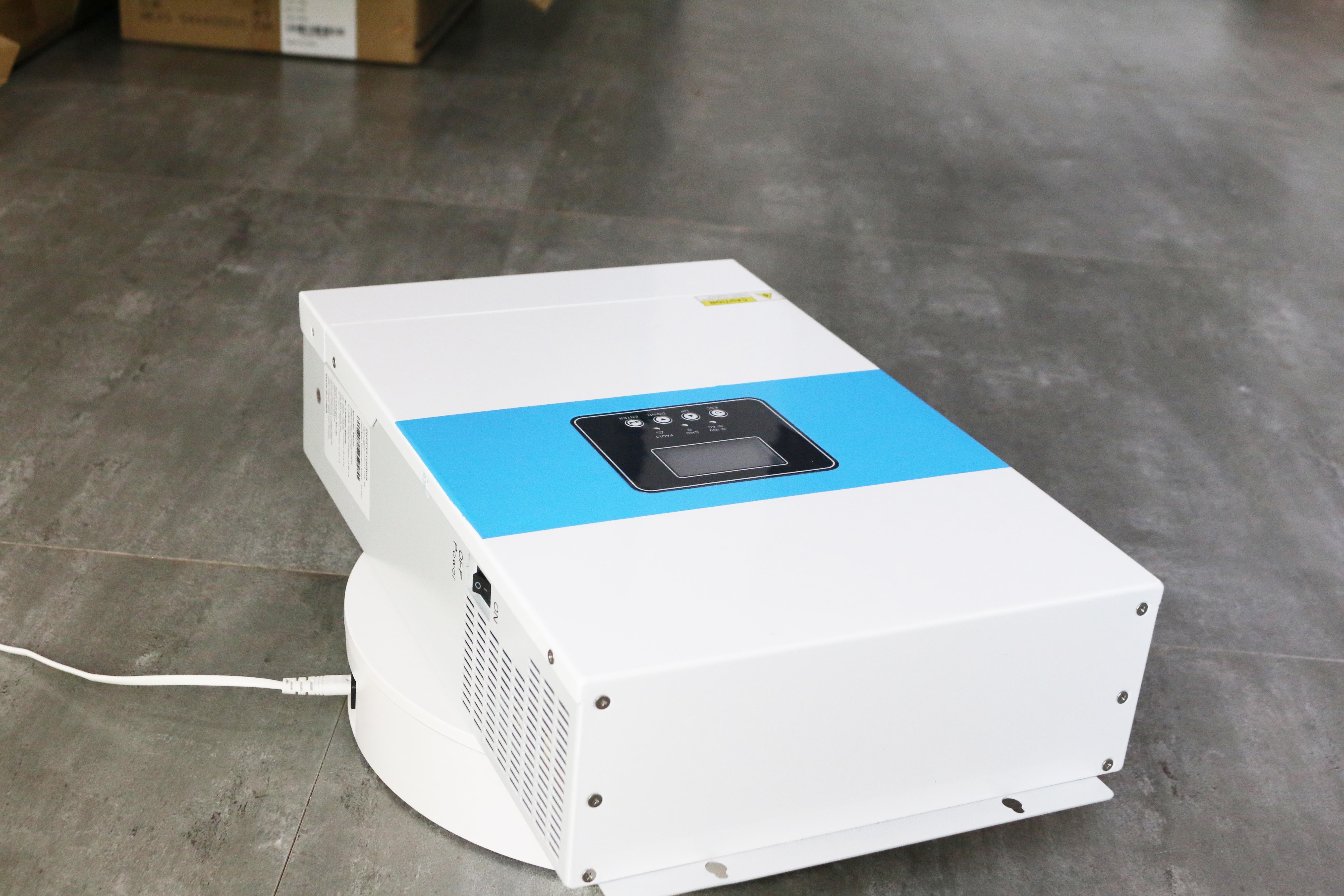

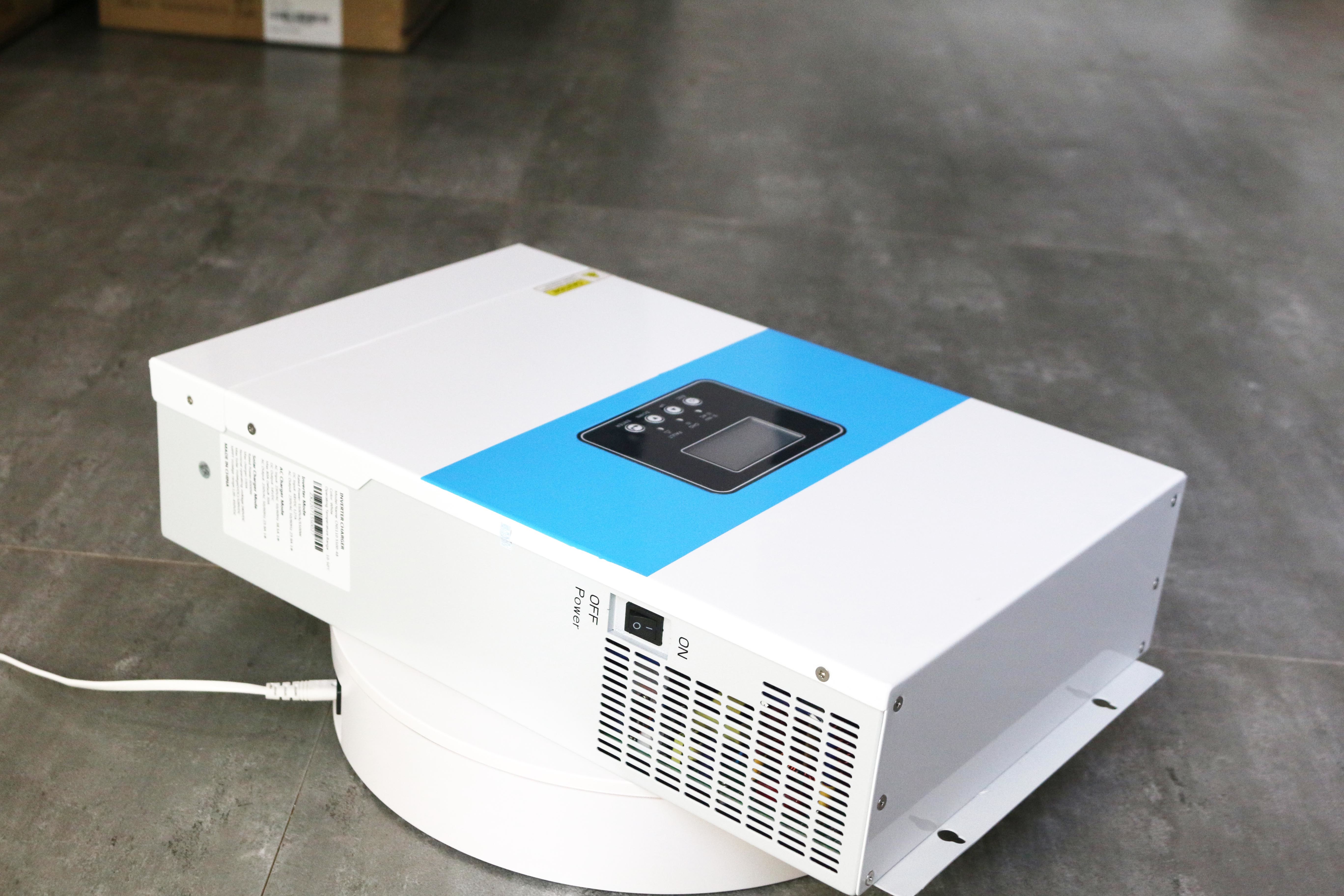

Off Grid Solar Charge Control Inverter Solar Solar Panel Cable 5.5Kw
About Product:
This is a multifunctional inverter/charger that combines the functions of an inverter, solar charger and battery charger to provide UPS support in a portable size. Its comprehensive LCD display provides user-configurable and easy-to-access button operation, and the off-grid inverter has a variety of input power sources, which can be connected to solar panels, generators, batteries, and utility power, so it is relatively For grid-connected inverters, its application range is wider
About parameters:
| Storage temperature | -15°C-60°C |
| Maximum PV charge current | 100A |
| PV maximum power | 5000W |
| PV maximum open circuit voltage | 500VDC |
| Maximum AC charge current | 80A |
| Frequency range | 50Hz/60Hz(Automatic adaptation) |
Features:
1.High efficiency pure sine wave inverter(PF=1)
2.Wide PV input range (120Vdc-500Vdc)80A MPPT SCC; Intelligent 3 stage 80A-100A AV charger
3.Surges to 2X continuous power for 5 seconds for motor loads
4.Intelligent functionality enables utility and solar input prioritization
5.Wide utility input range(90Vac-280Vac)for unreliable grid even
6.In the most challenging environments
7. Configurable battery charging current based on applications via LCD setting .
8.ON/OFF rocker switch can control AC output.
9. With power saving mode function, it can reduce no-load loss.
10. Intelligent adjustable speed fan is adopted for efficient heat dissipation and extended system life.
11. Possessing multiple protection functions and 360° comprehensive protection.
12. Possessing complete short circuit protection, overvoltage and undervoltage protection, overload protection, back filling protection, etc.
Details:
Factory Details:
FAQ:
Can the inverter convert AC to DC?
A:NO. An inverter can only convert DC to AC. The ones that can convert AC to DC are called rectifiers.
Q:What’s the difference between low frequency converter and high frequency converter?
A:1. Low frequency DC to AC converter is stronger for inductive loads, such as fan, motor and air conditioner.
2. Usually, low frequency converter has transformer, while high frequency converter has no transformer.
3. For same power size, low frequency converter is heavier.
4. Low frequency converter has higher stability.
Q:Can the inverter convert AC to DC?
NO. An inverter can only convert DC to AC. The ones that can convert AC to DC are called rectifiers.
Q:The application of power inverters
A:By converting DC into AC electrical energy, an off-grid inverter has a wide range of loads, from powering low power
appliance (such as a fan) to even backing up a building or an industrial park in power outage.
