Aluminum Alloy Micro Inverter Solar System IP65 2000W AC Voltage Grid Tie Inverter

Product Details:
Place of Origin: China
Brand Name: Minghong
Certification: ETL,EMC,CE,LVD
Model Number: WVC-2000
Payment & Shipping Terms:
Minimum Order Quantity: 2 EA
Price: $199-$235
Packaging Details: Box weight:18.38KG Box size:430x405x380mm Packing Size:430x375x140mm
Delivery Time: 10~20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 PCS/M
  • Detail Information
  • Product Description

Detail Information

Name: Micro Inverter Operating Voltage Range: 22-60V
Power Factor: >95% Static MPPT Efficiency: 99.5%
Loss Of Power At Night: Loss Of Power At Night Short-circuit Current: 4*23A
Heat Dissipation Mode: Self-cooling Monitoring System: APP
High Light:

Aluminum Alloy Micro Inverter Solar System

,

IP65 Micro Inverter Solar System

,

2000W AC micro inverter

Product Description

Solar Grid Tie Inverter 2000W IP65 Waterproof AC Voltage Micro Inverter Aluminum Alloy



Description:

Because such small systems are often used in densely populated places, security issues are prominent. The output voltage of traditional centralized inverters is often too large, which is easy to cause safety accidents such as fire. The micro-inverter was developed for the above-mentioned problems, in order to solve the problems faced by small power generation systems when they are used in densely populated places.



Specifications:

Communication mode Wi-Fi
Power transmission mode Reverse transmission.Load priority
Size(LxWxH) 370mmx 300mm x41.6mm

Temperature range

-40°C to +65°C
Number of branch connections 3PCS( Single)
AC frequency range 48-51Hz/58-61Hz



Product Description:
1 . Independent machine with its own secret makes the system more secure



2 . Modular functions can be embedded in smart home system



3 . Transmission range of ultra remote communication module can reach 1 km



4 . Intelligent Internet of Things monitoring system (with WiFi data terminal)



5 . Multi-platform adaptation for smart mobile devices (Android/IOS)



Our service:

Tuxun focuses on service for Solar cell,solar panel,flexible solar panel,solar inverter,solar system,solar battery,solar controller.



Featurs:

1. Small size, flexible installation, can be installed on the frame of the solar panel, or set up a separate installation rail;


2. The output voltage is small, and it is placed in an outdoor environment, which is conducive to preventing fires;


3. The micro-inverter can control each solar panel individually, avoiding the barrel response of the series inverter, so it can improve the system efficiency;



Details display:

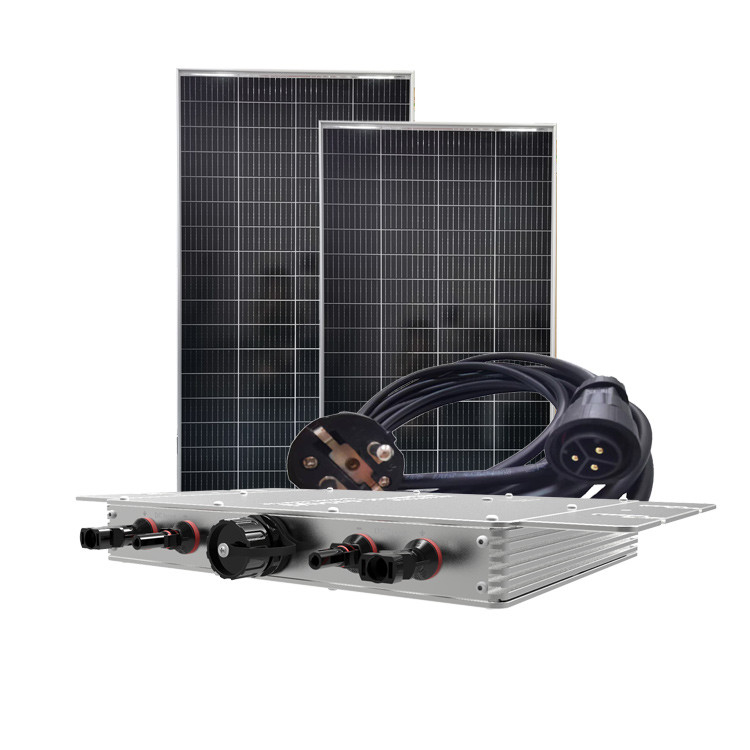

Aluminum Alloy Micro Inverter Solar System IP65 2000W AC Voltage Grid Tie Inverter 0

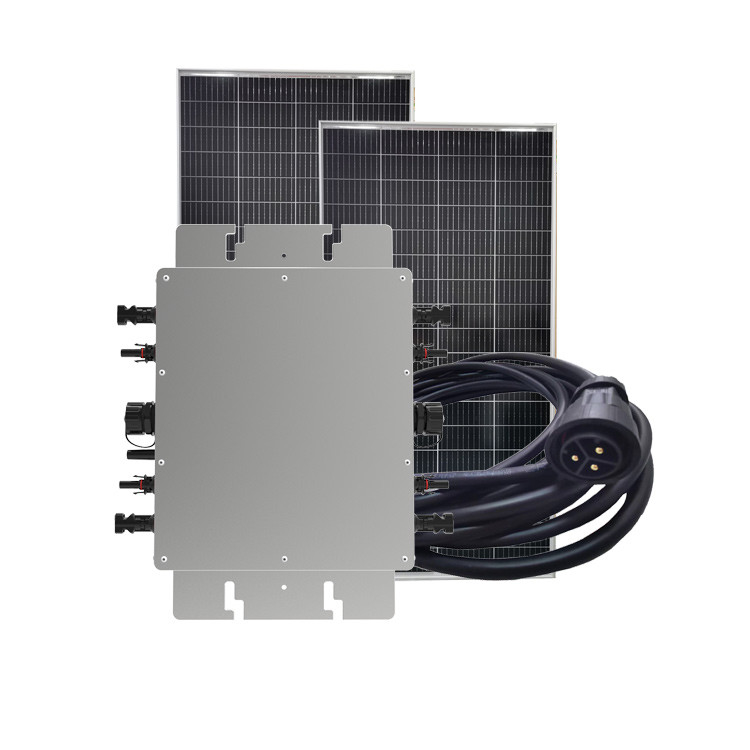

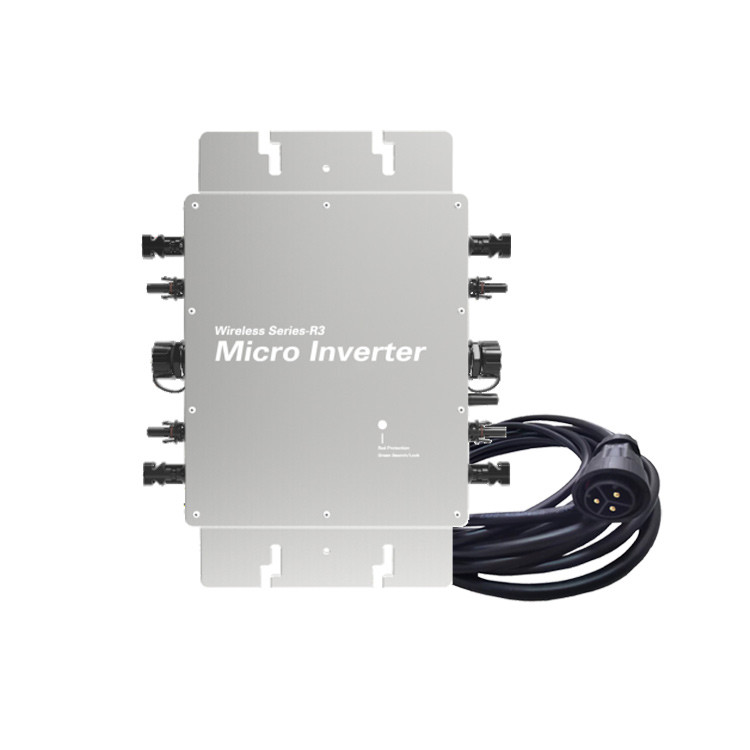

Aluminum Alloy Micro Inverter Solar System IP65 2000W AC Voltage Grid Tie Inverter 1Aluminum Alloy Micro Inverter Solar System IP65 2000W AC Voltage Grid Tie Inverter 2
Luoyang Tuxun Electronic Technology Co., Ltd. in the energy industry, has a number of industrial chains, the company has
the ability to quickly transfer customer needs to the production line, to provide personalized customized services. Our
excellent research and development ability also enables our products to be updated quickly. Compared with traditional
production enterprises, we have greater service advantages and have gained recognition from more customers.
